SINISTER SDX Series Amplifiers

DESCRIPTION

#SINISTERSDX2

• The Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply. The MAXED power supply is a Patented technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.
• What this means to you: Less current draw, less strain on the electrical system, less generated heat. All this results in more play time! The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install. Sinister Series amps are on a whole new level above substandard car amps. These high-end marine amplifiers are designed to give you plenty of power while standing up to the harshest marine environment.

Features:

• Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive class-D power supplies combined with Wet Sounds MAXED™ technology.
• Our innovative design results in less draw on your boat’s electrical system without sacrificing sound performance.
• Layered PCBs and advanced microprocessors give you a smart, compact amp that gets the job done without trouble or fuss.
• All units comes with remote leveler control, removable speaker plugs, high-level speaker input, and an LED-badged enclosure to make your amp look as good as it sounds.

Specs:

• Full Range Class D Amplifier
• Channels: 2
• Stereo @ 4 Ohms: 2 x 400 Watts @ 58A
• Stereo @ 2 Ohms: 2 x 620 Watts @ 107A
• Mono @ 4 Ohms: 1 x 1250 Watts @ 108A
• Input Sensitivity: Low Level 0.2V - 4.1V
• Crossover Range High and Low Pass: 30Hz - 300Hz 12dB/Octave
• S/N Ratio (A wtg): >83dB >110dB
• Bass Boost: 0-12.5dB @ 27Hz - 110Hz
• 15.6V Overvolt Protection: True
• Remote Level Range: 0 db to -61 db
• Frequency Response: 3dB - 8 Hz - 50 kHz
• Please click here for additional information.

DOCUMENTS

#SINISTERSDX2

There are no additional documents/resources available at this time.

SHIPPING

#SINISTERSDX2

We offer FREE shipping on orders totalling $500+ (CAD) excluding taxes. Orders $499 and less will be charged a flat rate of $30. Orders that necessitate truck freight, exceed 150 lbs, or are too large for standard courier services are not eligible for free shipping. In such cases, we will provide a shipping estimate for your approval before dispatching any products.

Please note that our shipping services are exclusively available within Canada, covering the provinces of British Columbia, Alberta, Saskatchewan, Manitoba, Ontario, Prince Edward Island, New Brunswick, Nova Scotia, and Quebec.

Kindly be aware that shipping to Yukon, Northwest Territories, Nunavut, and Newfoundland and Labrador is currently unavailable. Estimated shipping dates/delivery times can vary, please view our complete shipping policy HERE.

RETURNS

#SINISTERSDX2

Kindly direct all inquiries regarding returns or warranties to info@rpmperformance.ca. For a comprehensive overview of our policy, please click HERE. Inquires are not automatically approved and/or refunded.

Returns and refunds are granted under  the following circumstances: (1) warranty or defective item, or (2) specific scenarios such as: cancellation by the buyer before fulfillment/shipping, incorrect product shipped by the seller, or inaccurate fitment/product information provided in the seller's listing.

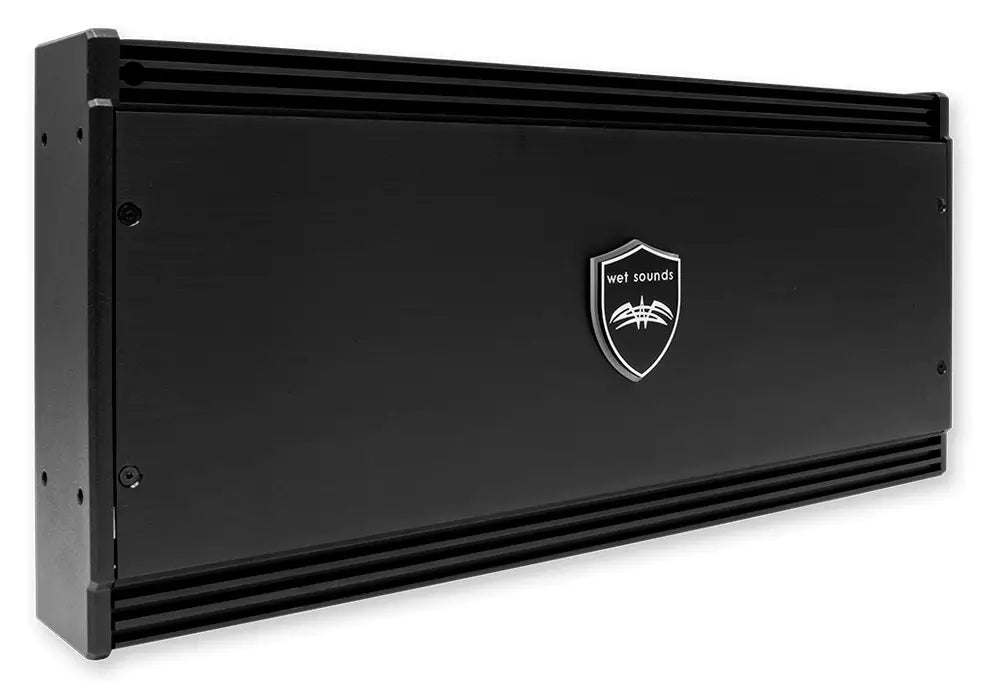

DESCRIPTION

#SINISTERSDX2500

• The Sinister-SDX 2500 Class D Mono Block Subwoofer Amplifier is the most powerful amplifier Wet Sounds has ever built. Employing Class D technology plus the Wet Sounds exclusive MAXED Power Supply, the Sinister-SDX 2500 achieves an efficiency rating of over 87% - one of the highest available in a marine amplifier. This means more power, less current drain, less strain on the electrical system, less generated heat. All resulting in more playing time!
• The Sinister-SDX 2500 uses the same intelligent microprocessor controlled protection circuitry used on all Sinister SDX amplifiers for overvoltage/undervoltage protection, DC offset & speaker short protection, as well as thermal rollback to ensure consistent play in the harsh marine environment. The protection circuitry is displayed in the back lit Wet Sounds shield logo. Please refer to the user’s manual for details about the protection circuitry.
• As further protection against use in the harsh marine environment, the SDX2500 includes a sealed chassis for the top mounted controls, and a four-layer conformal coated PC Board.

Features:

• Master/Slave configuration – Allows control of 2 or more SDX2500s from 1 set of controls. Gains, crossovers, bass boosts, subsonic filters, and remote levels can be controlled from a single “Master” SDX2500 amplifier. This eliminates gain/crossover matching normally needed when using multiple amplifiers. Also eliminates the use of RCA “Y” adaptors.See the user’s manual for more detail on this feature.
• Remote Level Control – Included in all Sinister SDX amplifiers allows control of the total output of the amplifier.The Remote Level Control will never exceed the gain level set on the chassis of the amplifier. This control should be used as a convenience when only the bass output in the system needs to be decreased.
• Multi color top mounted LED Badge – All Sinister amplifiers come equipped with the Wet Sounds shield logo badge that can be set to display Red, White or Blue as the status indicator. The badge can also be rotated for vertical or horizontal placement – depending on how the amplifier is mounted.

Specs:

• Full Range Class D Monoblock Amplifier
• Mono @ 4 Ohms: 1000W x 1 @ < 1% THD
• Mono @ 2 Ohms: 1700W x 1 @ < 1% THD
• Mono @ 1 Ohm: 2500W x1 @ < 1% THD
• Input Sensitivity: 0.2V – 6.0V
• Crossover Range Low Pass: 50Hz – 150Hz 12dB/Octave
• Crossover Range Subsonic Filter: 10Hz – 50Hz 12dB/Octave
• Bass Boost: 0 - 12dB Variable 30Hz – 125Hz
• Fusing: 6 x 40A ATC fuses
• Power Ground Input: 1/0 AWG wire capable
• Frequency Response: 10Hz – 150 Hz
• Dimensions: 22.125” (L) x 10.25” (W) x 3.0” (H)
• Please click here for additional information.

DOCUMENTS

#SINISTERSDX2500

There are no additional documents/resources available at this time.

SHIPPING

#SINISTERSDX2500

We offer FREE shipping on orders totalling $500+ (CAD) excluding taxes. Orders $499 and less will be charged a flat rate of $30. Orders that necessitate truck freight, exceed 150 lbs, or are too large for standard courier services are not eligible for free shipping. In such cases, we will provide a shipping estimate for your approval before dispatching any products.

Please note that our shipping services are exclusively available within Canada, covering the provinces of British Columbia, Alberta, Saskatchewan, Manitoba, Ontario, Prince Edward Island, New Brunswick, Nova Scotia, and Quebec.

Kindly be aware that shipping to Yukon, Northwest Territories, Nunavut, and Newfoundland and Labrador is currently unavailable. Estimated shipping dates/delivery times can vary, please view our complete shipping policy HERE.

RETURNS

#SINISTERSDX2500

Kindly direct all inquiries regarding returns or warranties to info@rpmperformance.ca. For a comprehensive overview of our policy, please click HERE. Inquires are not automatically approved and/or refunded.

Returns and refunds are granted under  the following circumstances: (1) warranty or defective item, or (2) specific scenarios such as: cancellation by the buyer before fulfillment/shipping, incorrect product shipped by the seller, or inaccurate fitment/product information provided in the seller's listing.

DESCRIPTION

#SINISTERSDX4

• The Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply. The MAXED power supply is a Patented technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.
• What this means to you: Less current draw, less strain on the electrical system, less generated heat. All this results in more play time! The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install. Sinister Series amps are on a whole new level above substandard car amps. These high-end marine amplifiers are designed to give you plenty of power while standing up to the harshest marine environment.

Features:

• Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive class-D power supplies combined with Wet Sounds MAXED™ technology.
• Our innovative design results in less draw on your boat’s electrical system without sacrificing sound performance.
• Layered PCBs and advanced microprocessors give you a smart, compact amp that gets the job done without trouble or fuss.
• All units comes with remote leveler control, removable speaker plugs, high-level speaker input, and an LED-badged enclosure to make your amp look as good as it sounds.

Specs:

• Full Range Class D Amplifier
• Channels: 4
• Stereo @ 4 Ohms: 4 x 185 Watts @ 60A
• Stereo @ 2 Ohms: 4 x 340 Watts @ 123A
• Mono @ 4 Ohms: 2 x 685 Watts @ 122A
• Input Sensitivity: Low Level 0.2V - 6.1V
• Crossover Range High and Low Pass: 30Hz - 300Hz 12dB/Octave
• S/N Ratio (A wtg): >90dB >113dB
• Bass Boost: 0-12.5dB @ 27Hz - 110Hz
• 15.6V Overvolt Protection: Yes
• Remote Level Range: 0 db to -61 db
• Frequency Response: 3dB - 8 Hz - 35 kHz
• Please click here for additional information.

DOCUMENTS

#SINISTERSDX4

There are no additional documents/resources available at this time.

SHIPPING

#SINISTERSDX4

We offer FREE shipping on orders totalling $500+ (CAD) excluding taxes. Orders $499 and less will be charged a flat rate of $30. Orders that necessitate truck freight, exceed 150 lbs, or are too large for standard courier services are not eligible for free shipping. In such cases, we will provide a shipping estimate for your approval before dispatching any products.

Please note that our shipping services are exclusively available within Canada, covering the provinces of British Columbia, Alberta, Saskatchewan, Manitoba, Ontario, Prince Edward Island, New Brunswick, Nova Scotia, and Quebec.

Kindly be aware that shipping to Yukon, Northwest Territories, Nunavut, and Newfoundland and Labrador is currently unavailable. Estimated shipping dates/delivery times can vary, please view our complete shipping policy HERE.

RETURNS

#SINISTERSDX4

Kindly direct all inquiries regarding returns or warranties to info@rpmperformance.ca. For a comprehensive overview of our policy, please click HERE. Inquires are not automatically approved and/or refunded.

Returns and refunds are granted under  the following circumstances: (1) warranty or defective item, or (2) specific scenarios such as: cancellation by the buyer before fulfillment/shipping, incorrect product shipped by the seller, or inaccurate fitment/product information provided in the seller's listing.

DESCRIPTION

#SINISTERSDX6

• The Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED™ Power supply. The MAXED power supply is a Patented technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.
• What this means to you: Less current draw, less strain on the electrical system, less generated heat. All this results in more play time! The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install. Sinister Series amps are on a whole new level above substandard car amps. These high-end marine amplifiers are designed to give you plenty of power while standing up to the harshest marine environment.

Features:

• Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive class-D power supplies combined with Wet Sounds MAXED™ technology.
• Our innovative design results in less draw on your boat’s electrical system without sacrificing sound performance.
• Layered PCBs and advanced microprocessors give you a smart, compact amp that gets the job done without trouble or fuss.
• All units comes with remote leveler control, removable speaker plugs, high-level speaker input, and an LED-badged enclosure to make your amp look as good as it sounds.

Specs:

• Full Range Class D Amplifier
• Channels: 6
• Stereo @ 4 Ohms: 6 x 185 Watts @ 95A
• Stereo @ 2 Ohms: 6 x 290 Watts @ 168A
• Mono @ 4 Ohms: 3 x 585 Watts @ 168A
• Input Sensitivity: Low Level 0.2V - 6.1V
• Crossover Range High and Low Pass: 30Hz - 300Hz 12dB/Octave
• S/N Ratio (A wtg): >87dB >109dB
• Bass Boost: 0-12.5dB @ 27Hz - 110Hz
• 15.6V Overvolt Protection: Yes
• Remote Level Range: 0 db to -61 db
• Frequency Response: 3dB - 8 Hz - 35 kHz
• Please click here for additional information.
