PowerBass XL Powersports Amplifier

PowerBass XL Powersports Amplifier

$419.95 CAD
$494.95 CAD $419.95 CAD
Sale Sold out
Shipping calculated at checkout.
Size

2 in stock

The XL series was developed for the growing Power Sports market including UTV and Marine applications, where electronics must withstand harsh damp environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures.

These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.

Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw compared to other amplifiers with similar power output. The wrap around aluminum heatsink keeps everything running cool.

Extremely versatile, each model gives you’re a choice of low level RCA input or 3.5mm (1/8”) mini-pug Aux Input. The Aux Input allows for easy connection of portable devices such as an iPod, MP3 player or smartphone to become your source unit.

DESCRIPTION

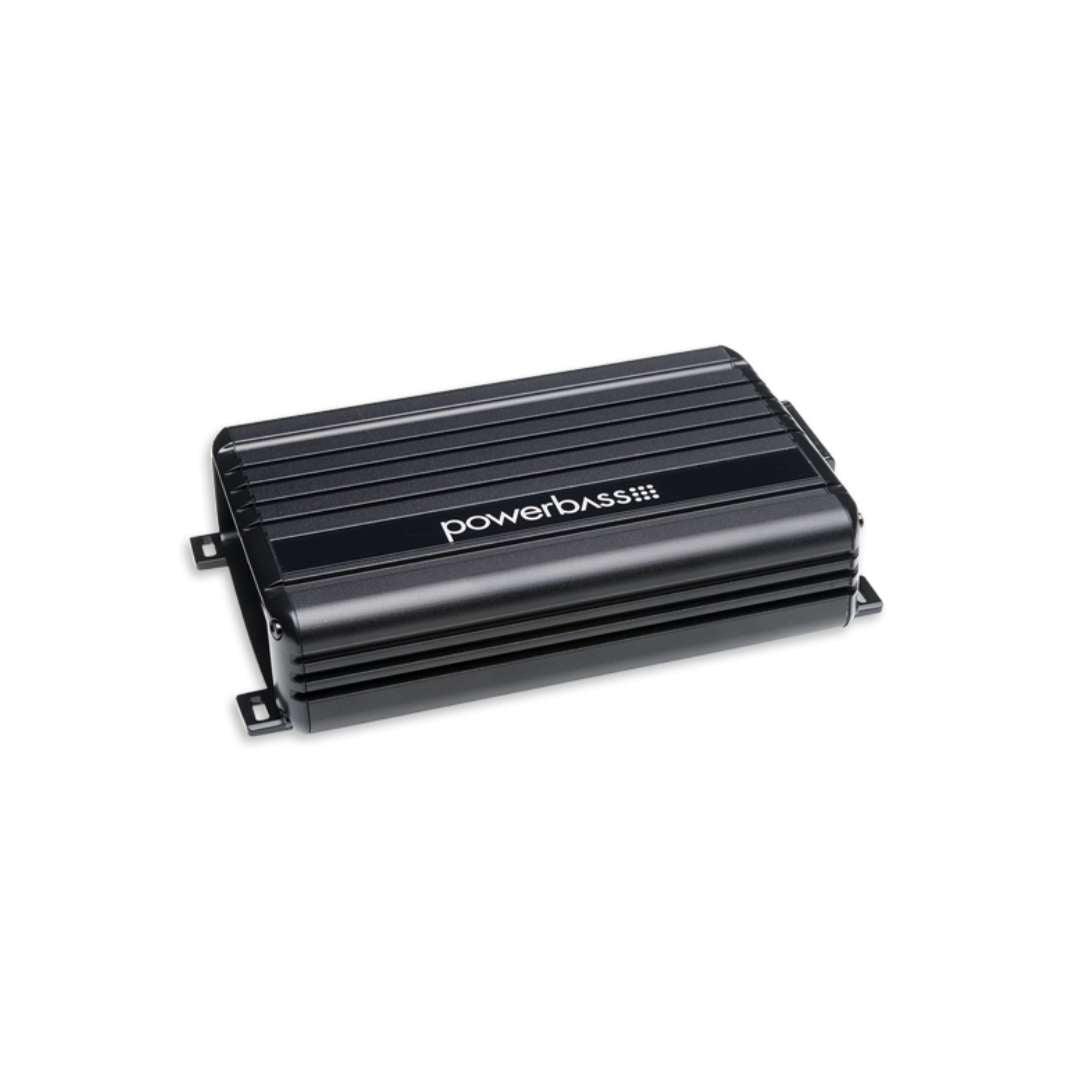

#XL2502

500 WATTS RMS 2-CHANNEL FULL RANGE CLASS D POWERSPORT AMPLIFIER

  • 500 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • International Rectifier® Chip Set
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Flipped Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low/High Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
SPECIFICATIONS
#XL2502
  • Peak Power: 800 watts
  • Subwoofer Frequency Range: 10 Hz - 400 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 7.5" x 4.5" x 1.6"
  • Depth: 7.5"
  • Channels (mono): 2
  • 4-ohm Power: 125 watts x 2
  • 4-ohm Mono Power: 500 watts x 1
  • 2-ohm Power: 250 watts x 2
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: N/A
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 1.6"
  • Width: 4.5"
  • Subwoofer EQ Frequency: 45 Hz
  • Low-Pass Crossover Freq: 40 Hz - 400 Hz
  • High-Pass Crossover Freq: 40 Hz - 250 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.04% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 100 watts x 4
  • Output Power (14.4 V) @ 2 ohm: 250 watts x 2
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz - 40 kHz
DESCRIPTION
#XL4001D

400W RMS @ 2Ω MONOBLOCK CLASS D POWERSPORT AMPLIFIER

  • 400 Watt High Efficiency Class D Design
  • 2-OHM Stable Mono Block Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Flipped Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
SPECIFICATIONS
#XL4001D
  • Peak Power: 800 watts
  • Subwoofer Frequency Range: 10 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 7.5" x 4.5" x 1.6"
  • Depth: 7.5"
  • Channels (mono): 1
  • 4-ohm Power: 220 watts x 1
  • 4-ohm Mono Power: 220 watts x 1
  • 2-ohm Power: 400 watts x 1
  • 1-ohm Mono Power: n/a
  • Selectable Subwoofer EQ: 0 - 18 dB Gain @ 45Hz
  • Variable Subsonic Freq: 10 Hz - 50 Hz
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 1.6"
  • Width: 4.5"
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 50 Hz - 250 Hz
  • High-Pass Crossover Freq: N/A
  • Crossover Slope: 24 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.04% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 200 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 350 watts x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz - 300 Hz
DESCRIPTION
#XL4255MX
  • IPX67 Water Resistant Sealed Design
  • Aluminum Die-Cast end caps with integrated input / output connectors
  • 2000 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • International Rectifier® Chip Set
  • Ultra Low Current Draw
  • 4-Layer Copper Plated PCB
  • Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • 3.5mm AUX Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low/High Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
SPECIFICATIONS
#XL4255MX
  • Peak Power: 2000 watts
  • Subwoofer Frequency Range: 10 Hz - 400Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 11.7" x 4.6" x 1.8"
  • Depth: 11.7"
  • Channels (mono): 4
  • 4-ohm Power: 125 watts x 4
  • 4-ohm Mono Power: 500 watts x 2
  • 2-ohm Power: 250 watts x 4
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
  • Variable Subsonic Freq: N/A
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 1.8"
  • Width: 4.6"
  • Subwoofer EQ Frequency: 45 Hz
  • Low-Pass Crossover Freq: 40 Hz - 400 Hz
  • High-Pass Crossover Freq: 40 Hz - 400 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.04% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 125 watts x 4
  • Output Power (14.4 V) @ 2 ohm: 250 watts x 4
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz - 40 kHz
DESCRIPTION

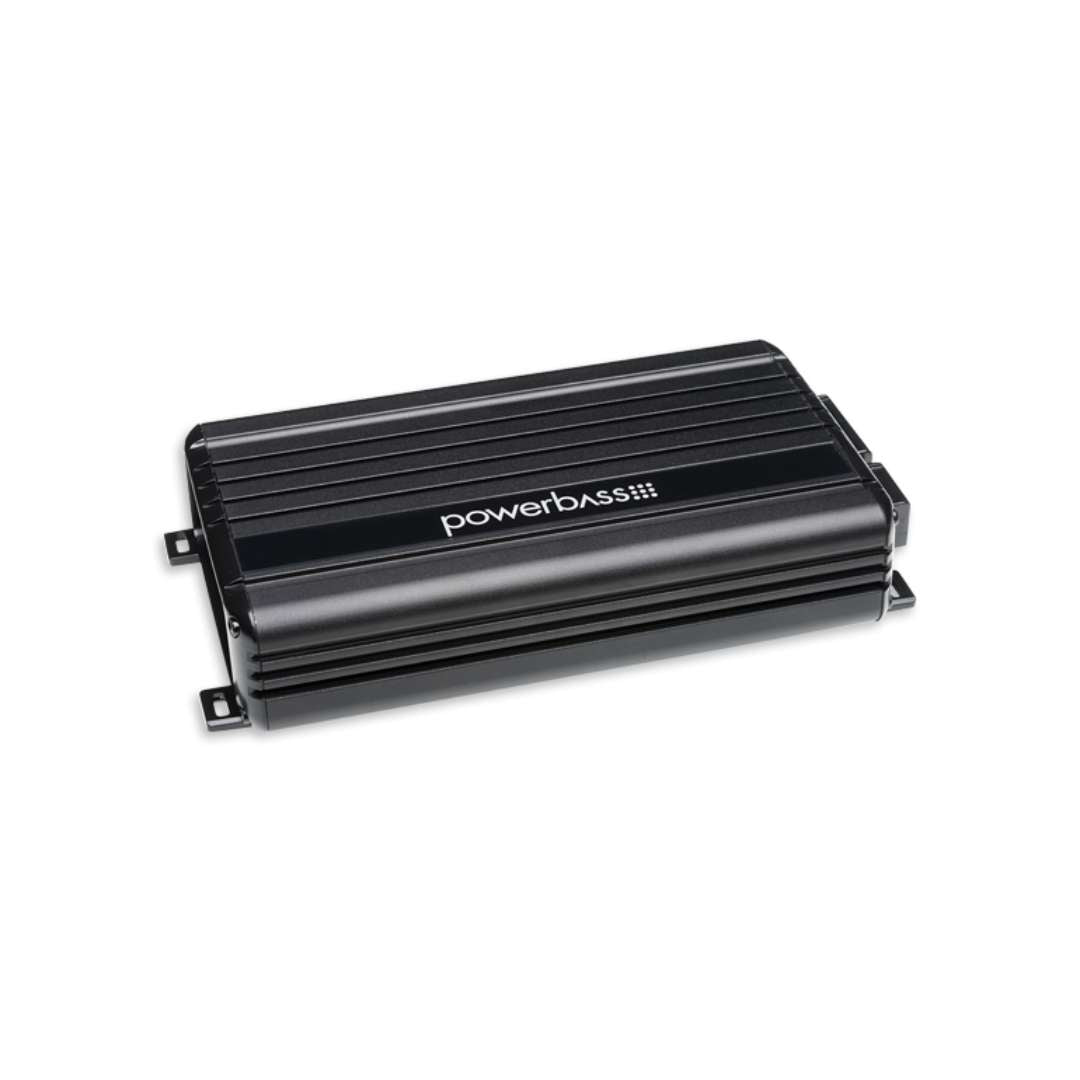

#XL6001D
  • 600 Watt High Efficiency Class D Design
  • 1-OHM Stable Mono Block Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Flipped Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
SPECIFICATIONS
#XL6001D
  • Peak Power: 1200 watts
  • Subwoofer Frequency Range: 10 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 8.4" x 4.5" x 1.6"
  • Depth: 8.4"
  • Channels (mono): 1
  • 4-ohm Power: 250 watts x 1
  • 4-ohm Mono Power: 250 watts x 1
  • 2-ohm Power: 400 watts x 1
  • 1-ohm Mono Power: 600 watts x 1
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: 10 Hz - 50 Hz
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 1.63"
  • Width: 4.5"
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 50 Hz - 250 Hz
  • High-Pass Crossover Freq: N/A
  • Crossover Slope: 24 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.4% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 250 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 400 watts x 1
  • Output Power (14.4 V) @ 1 ohm: 600 watts x 1
  • Frequency Response: 10 Hz - 300 Hz
DESCRIPTION

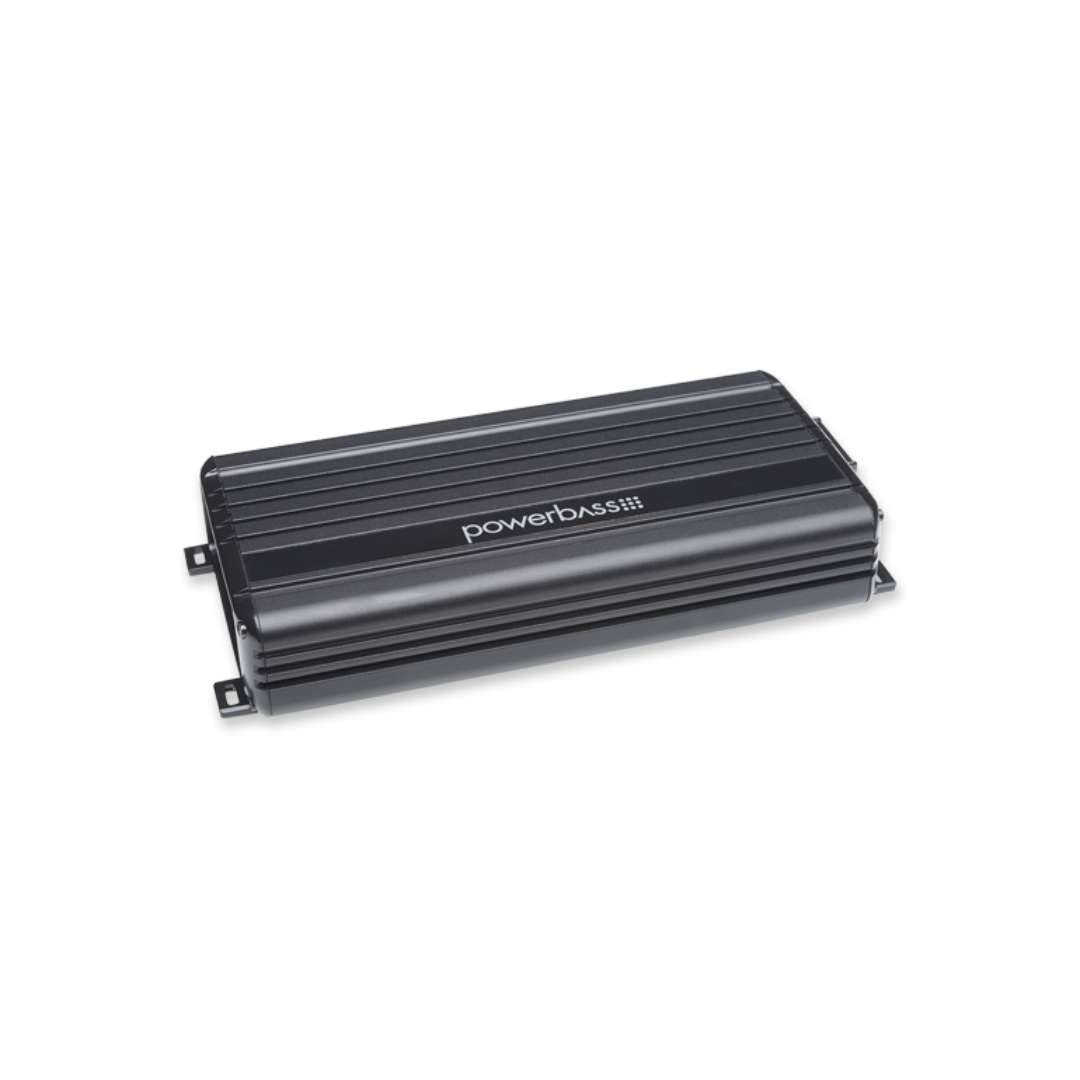

#XL8004
  • 800 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • International Rectifier® Chip Set
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low/High Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
SPECIFICATIONS
#XL8004
  • Peak Power: 1600 watts
  • Subwoofer Frequency Range: 10 Hz - 400Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 9.6" x 4.5" x 1.6"
  • Depth: 9.6"
  • Channels (mono): 4
  • 4-ohm Power: 100 watts x 4
  • 4-ohm Mono Power: 400 watts x 2
  • 2-ohm Power: 200 watts x 4
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
  • Variable Subsonic Freq: N/A
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 1.6"
  • Width: 4.5"
  • Subwoofer EQ Frequency: 45 Hz
  • Low-Pass Crossover Freq: 40 Hz - 400 Hz
  • High-Pass Crossover Freq: 40 Hz - 400 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.04% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 100 watts x 4
  • Output Power (14.4 V) @ 2 ohm: 200 watts x 4
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz - 40 kHz
DESCRIPTION

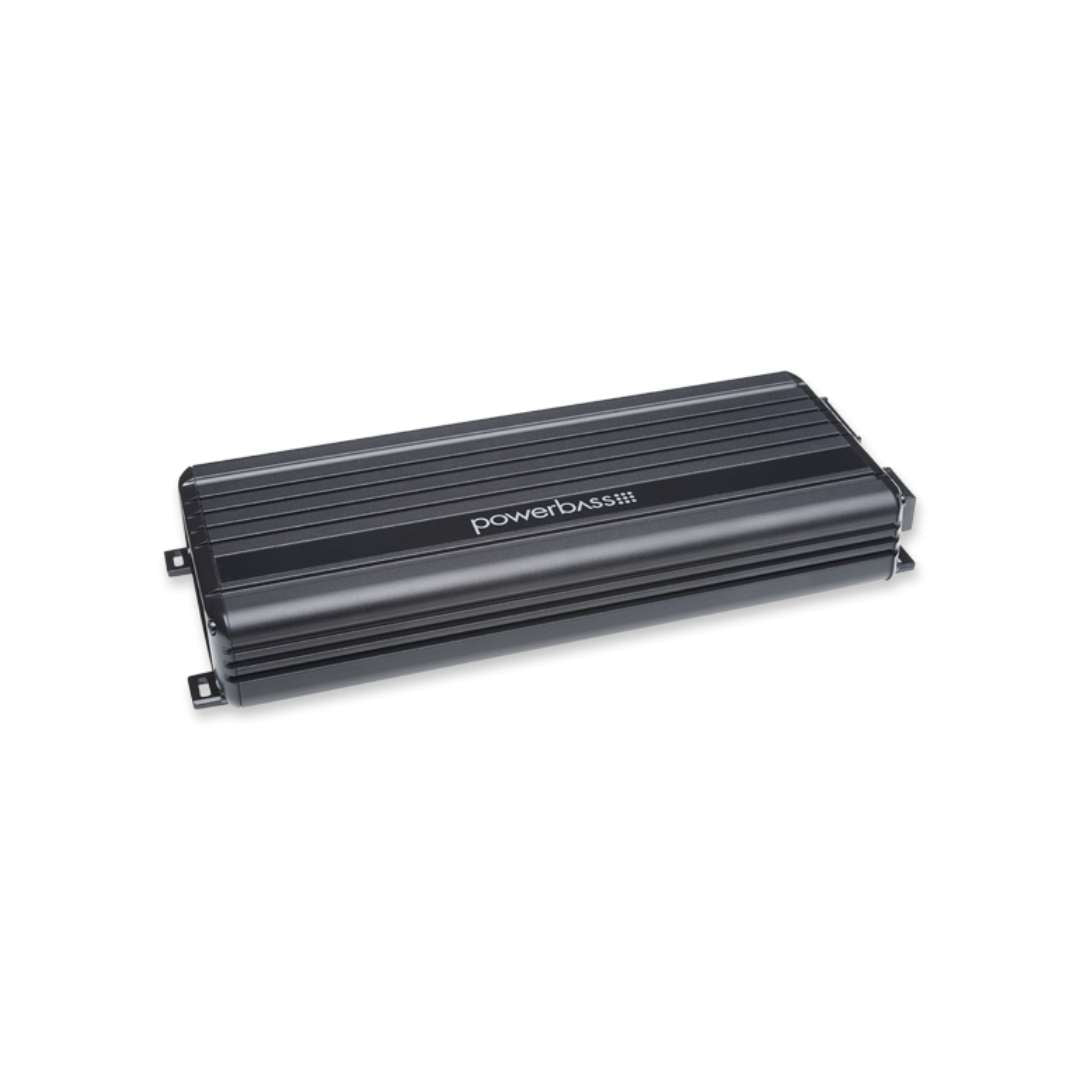

#X9005
  • 900 Watt 5 Channel High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • International Rectifier® Chip Set
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low/High Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
SPECIFICATIONS
#X9005
  • Peak Power: 2000 watts
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 1.6" x 11.2" x 4.5"
  • Depth: 4.5"
  • Channels (mono): 5
  • 4-ohm Power: 100 watts x 4 + 500 watts x 1
  • 4-ohm Mono Power: 400 watts x 2 + 500 watts x 1 2Ω
  • 2-ohm Power: 200 watts x 4 + 500 watts x 1
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
  • Variable Subsonic Freq: N/A
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 1.6"
  • Width: 11.2"
  • Subwoofer EQ Frequency: 0 - 18 dB @ 45 Hz
  • Low-Pass Crossover Freq: 40 Hz - 400 Hz
  • High-Pass Crossover Freq: 40 Hz - 400 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >85 dB
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 100 watts x 4 + 500 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 200 watts x 4 + 500 watts x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz - 40 kHz
DOCUMENTS

There are no additional documents/resources available at this time.

SHIPPING

We offer FREE shipping on orders totalling $500+ (CAD) excluding taxes. Orders $499 and less will be charged a flat rate of $30. Orders that necessitate truck freight, exceed 150 lbs, or are too large for standard courier services are not eligible for free shipping. In such cases, we will provide a shipping estimate for your approval before dispatching any products.

Please note that our shipping services are exclusively available within Canada, covering the provinces of British Columbia, Alberta, Saskatchewan, Manitoba, Ontario, Prince Edward Island, New Brunswick, Nova Scotia, and Quebec.

Kindly be aware that shipping to Yukon, Northwest Territories, Nunavut, and Newfoundland and Labrador is currently unavailable. Estimated shipping dates/delivery times can vary, please view our complete shipping policy HERE.

RETURNS

Kindly direct all inquiries regarding returns or warranties to info@rpmperformance.ca. For a comprehensive overview of our policy, please click HERE. Inquires are not automatically approved and/or refunded.

Returns and refunds are granted under  the following circumstances: (1) warranty or defective item, or (2) specific scenarios such as: cancellation by the buyer before fulfillment/shipping, incorrect product shipped by the seller, or inaccurate fitment/product information provided in the seller's listing.


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
View full details
