DB Drive NEO Marine Amplifiers

DB Drive NEO Marine Amplifiers

$529.95 CAD
$569.95 CAD $529.95 CAD
Sale Sold out
Shipping calculated at checkout.
Size

2 in stock

The NEO Amplifiers include built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB bass boost @ 45Hz.

DESCRIPTION
#4v24x125WRatedClassD4Channel

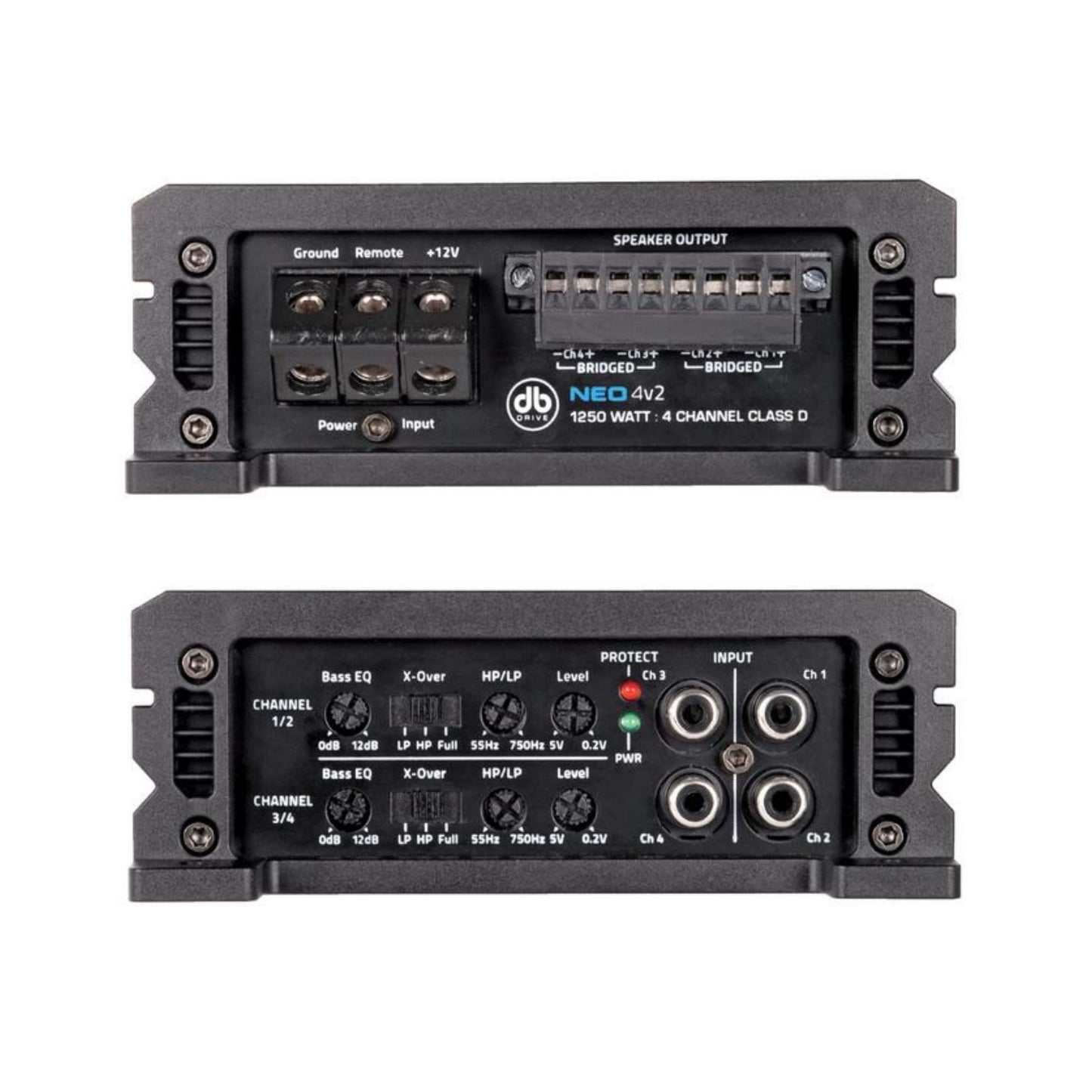

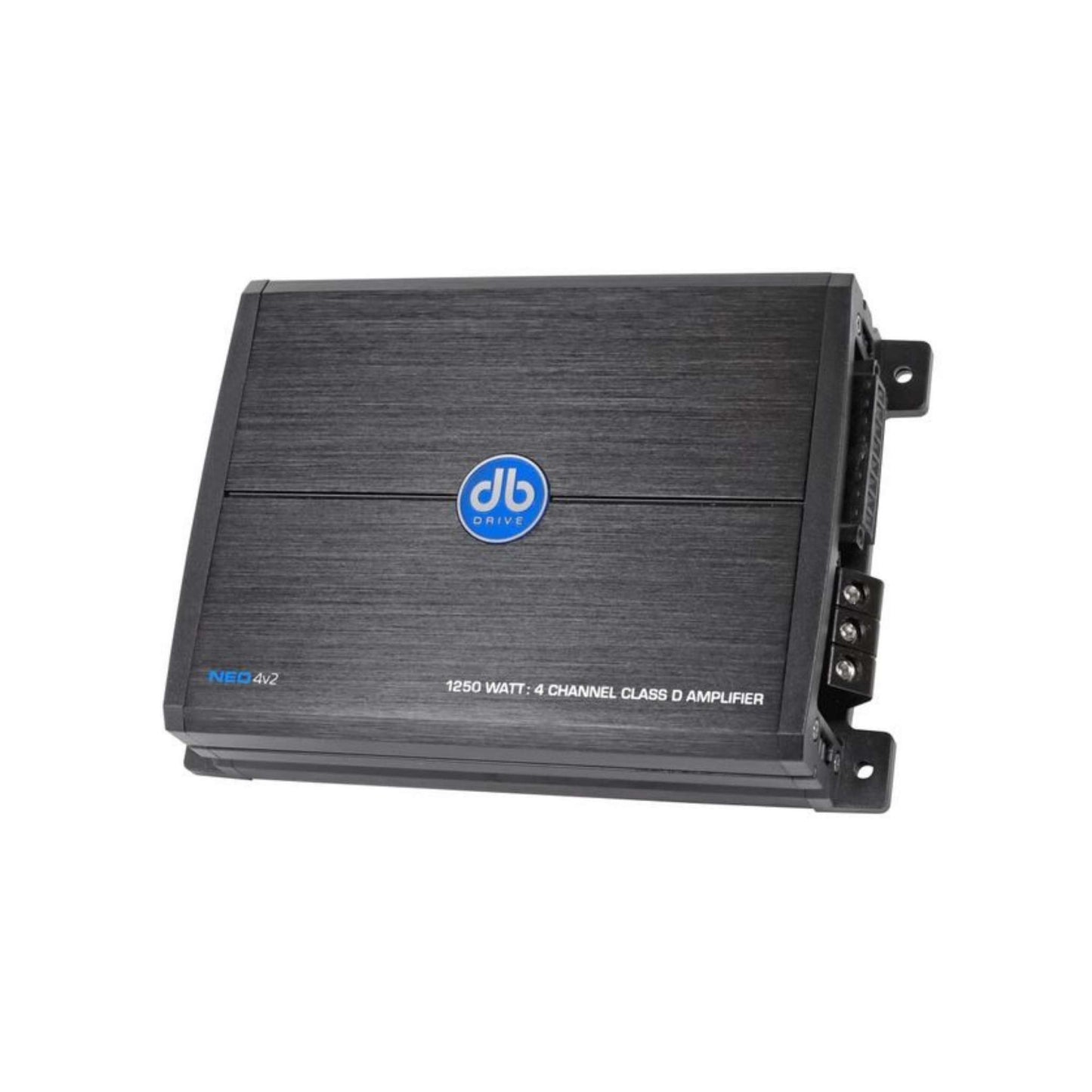

NEO4V2
  • 4 Channel Full Range Class D Technology
  • 2 Ohm Mono load Capability
  • Amphibious grade conformal coating on PCB
  • Audiophile Grade RCA connectors
  • Variable 12dB High/Low-Pass Crossover Filters
  • Bridgeable Outputs @ 4 Ohm Load
  • Double Sided Circuit tablet
  • Compatible with any 4/2 Ohm Loudspeaker
SPECIFICATIONS
#4v24x125WRatedClassD4Channel
Rated Power @ 14.4 Volts:
    • 4 x 125 Watts @ 4 Ohm
    • 4 x 250 Watts @ 2 Ohm
    • 2 x 500 Watts @ 4 Ohm Bridged
Dimensions:
  • Length: 6.8" / (175mm)
  • Width: 5.3" / (135mm)
  • Height: 1.88" / (48mm)



DESCRIPTION
#5v24x125W1x500WRatedClassD5Channel

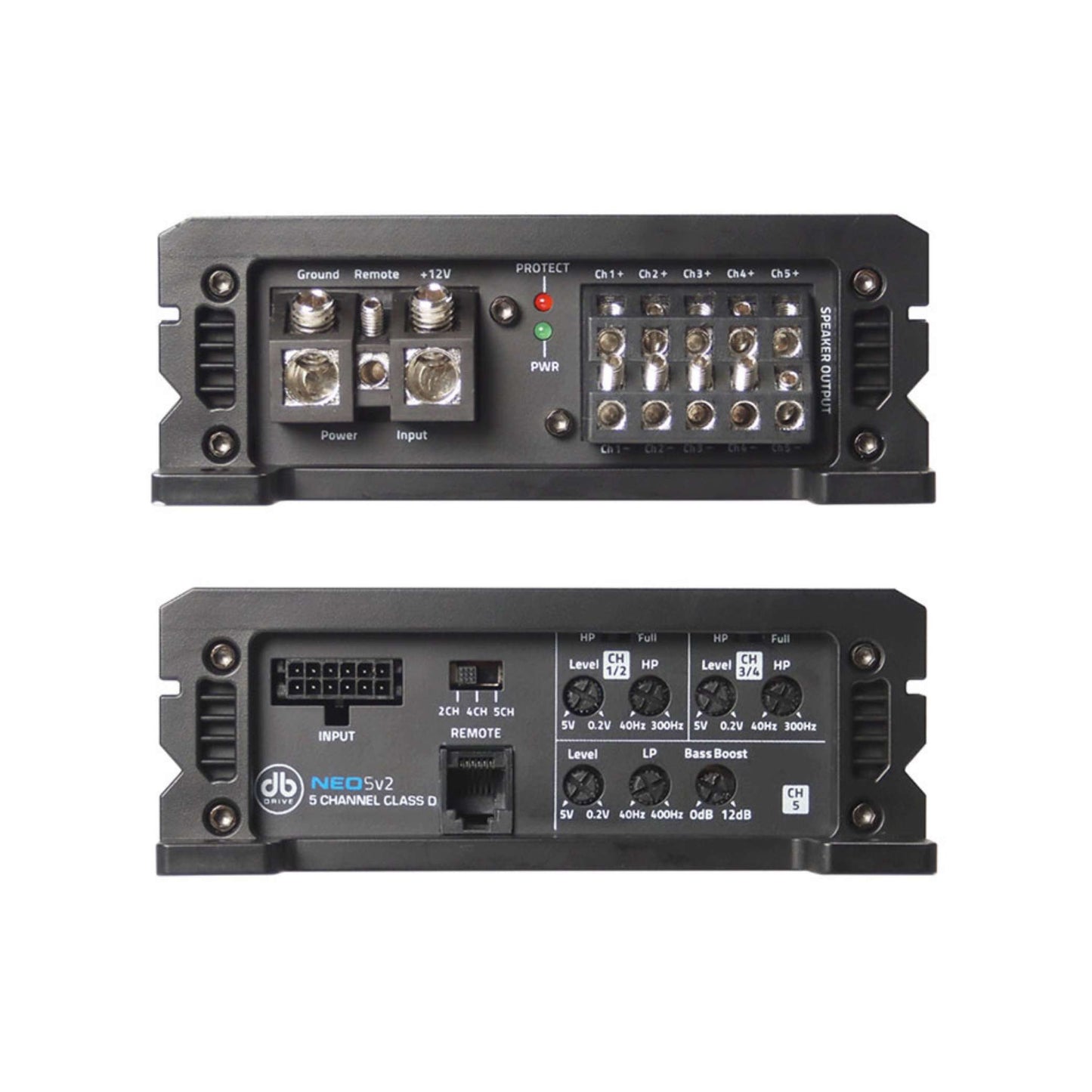

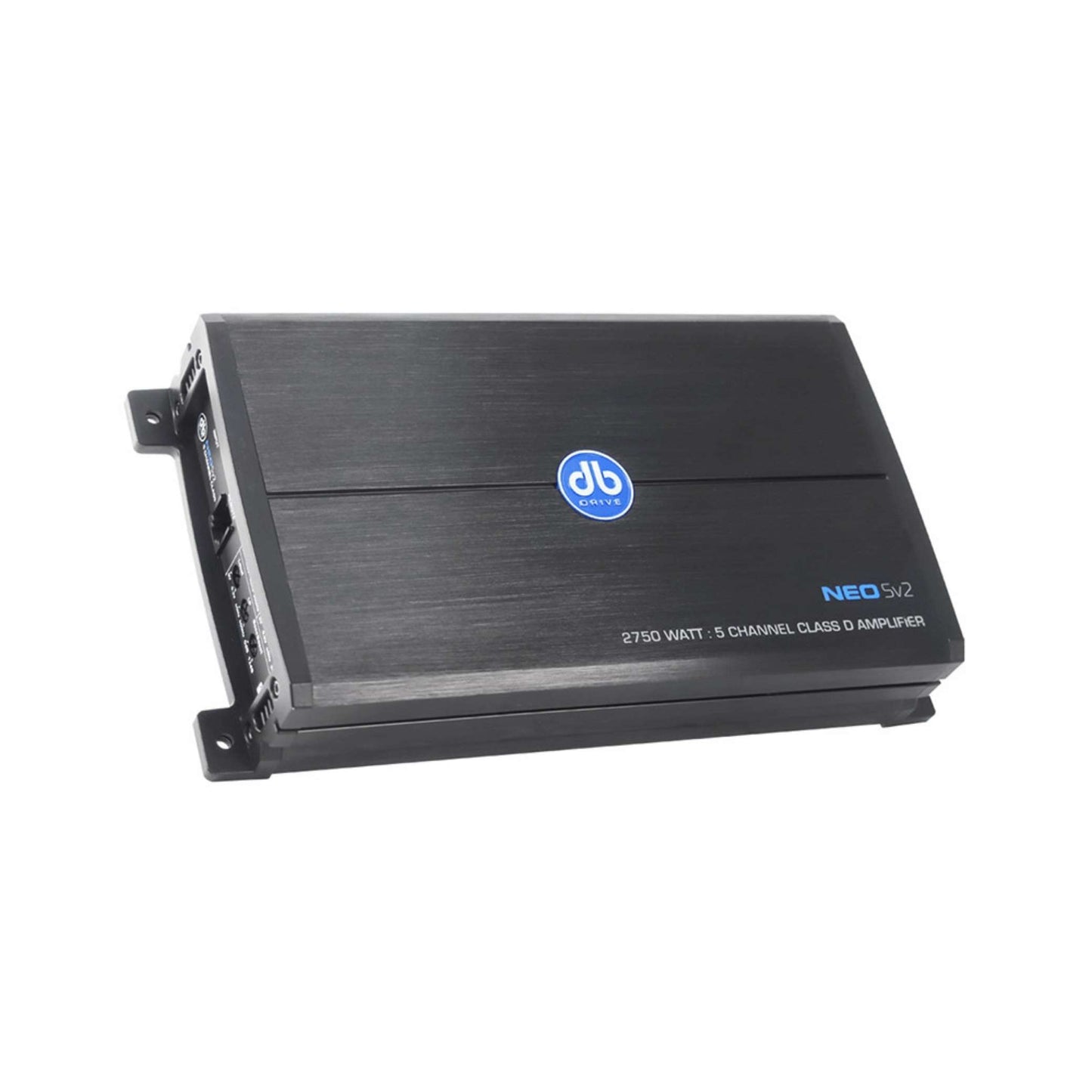

NEO5V2

  • 5 channel Full Range Class D Technology
  • 2 Ohm Stereo Load capability on Stereo Channels
  • 2 Ohm Mono Load capability on 5th Mono channel
  • Amphibious grade conformal coating on PCB
  • Audiophile Grade RCA Connecters
  • Variable 12dB High/Low-pass crossover filters
  • Bridgeable outputs @ 4 Ohm load
  • Double Sided circuit tablet
  • Bass Remote included
  • Compatible with any 4/2 Ohm loudspeaker
SPECIFICATIONS
#5v24x125W1x500WRatedClassD5Channel
Rated Power @ 14.4 Volts:
  • 4 x 125 Watts @ 4 Ohm
  • 4 x 250 Watts @ 4 Ohm
  • 2 x 250 Watts @ 4 Ohm Bridged
  • 1 x 500 Watts @ 2 Ohm 5th Ch.
Dimensions:
  • Length: 6.25" / (159mm)
  • Width: 5.20" / (132mm)
  • Height: 1.855" / (47mm)



DESCRIPTION
#15Kv2750WRatedClassDMonoblock

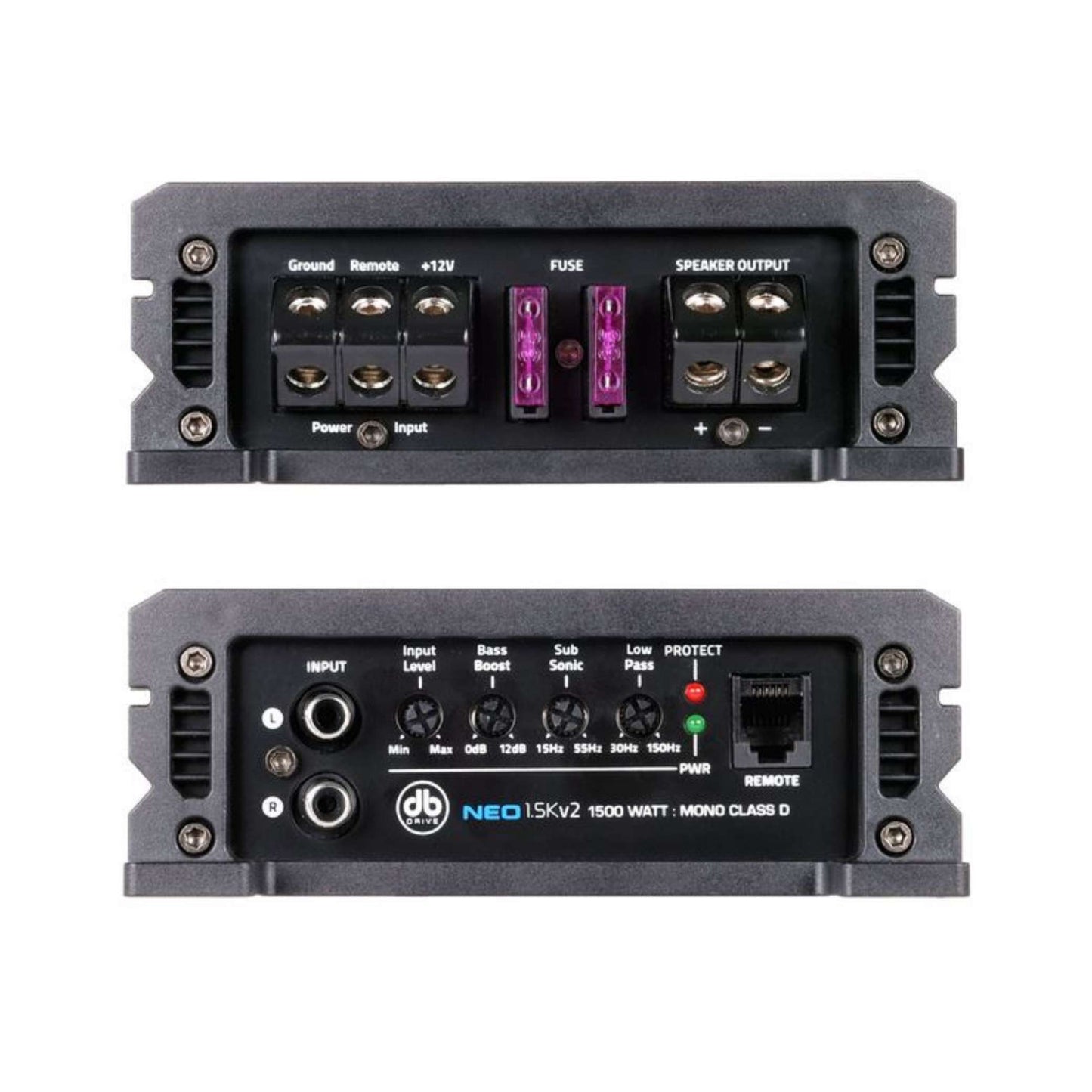

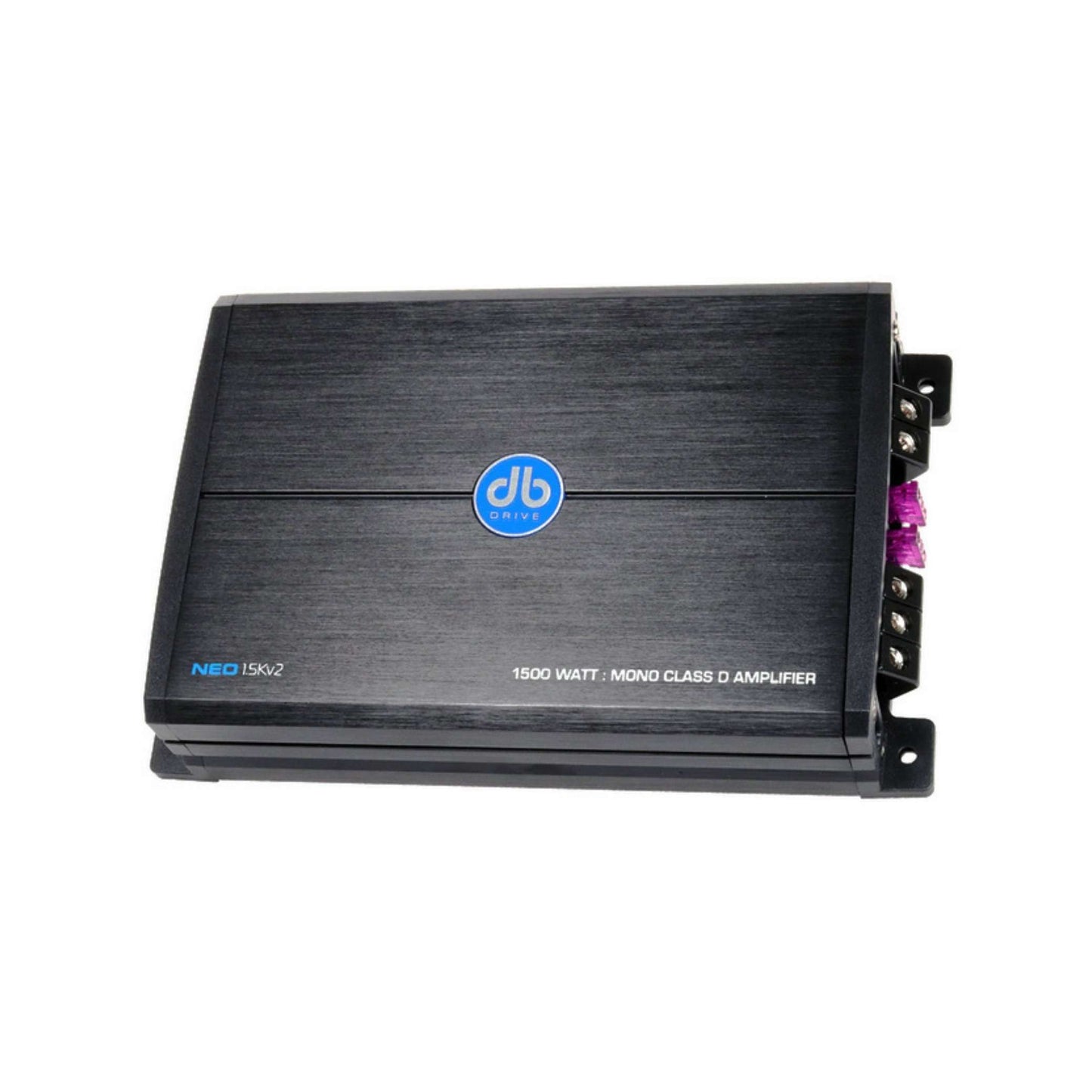

NEO1.5KV2

  • Mono Class D Technology
  • 1 Ohm Mono load Capability
  • Amphibnious grade conformal coating on PCB
  • Audiophile Grade RCA connectors
  • Variable Low-pass crossover filter
  • Variable Sub-sonic Filter
  • Double Sided Circuit tablet
  • Compatible with any 1 Ohm Subwoofer load
  • Remote Dash Bass Control Included
SPECIFICATIONS
#15Kv2750WRatedClassDMonoblock

Specs:

  • Rated @ 14 Volts:
  • 1 x 750 Watts @ 1 Ohm
  • 1 x 350 Watts @ 2 Ohm
  • THD (100Hz @ 1 Ohm): 0.04%
  • Bandwidth (-3 dB): 18Hz - 150Hz
  • Damping Factor (100 Hz @ 4 Ohm): 126
  • S/N ratio (as weighted @ 1 Volt): 99db
  • Input Sensitivity: .20V - 5.0V RMS
  • Minimum Load Impedance: 1 Ohm
  • Input: Pre in RCA
  • Mono Low Pass filter slope: 12dB
  • Low Pass filter range: 30Hz ~ 150Hz
  • Sub - Sonic Filter slope: 12dB
  • Sub - Sonic Filter range: 15Hz ~ 55Hz

Dimensions:

  • Length: 7.6" / 195 mm
  • Width: 5.3" / 135 mm
  • Height: 1.88" / 48 mm
DOCUMENTS

Please click HERE to view the NEO-V2-Manual.
